二叉树的遍历

适用级别:普及组
难度系数:4

深度优先遍历(Depth First Traversals ):
1、前序遍历(Preorder):先访问根结点,然后再前序遍历左子树,再前序遍历右子树(Root,Left,Right)
2、中序遍历(Inorder):先遍历根结点的左子树,然后是访问根结点,最后遍历右子树(Left,Root,Right)
3、后序遍历(Postorder):从左到右先叶子后结点的方式遍历访问左右子树,最后访问根结点(Left,Right,Root)
广度优先遍历(Breadth First Traversals ):
层序遍历(Level Order ):从根结点从上往下逐层遍历,在同一层,按从左到右的顺序对结点访问

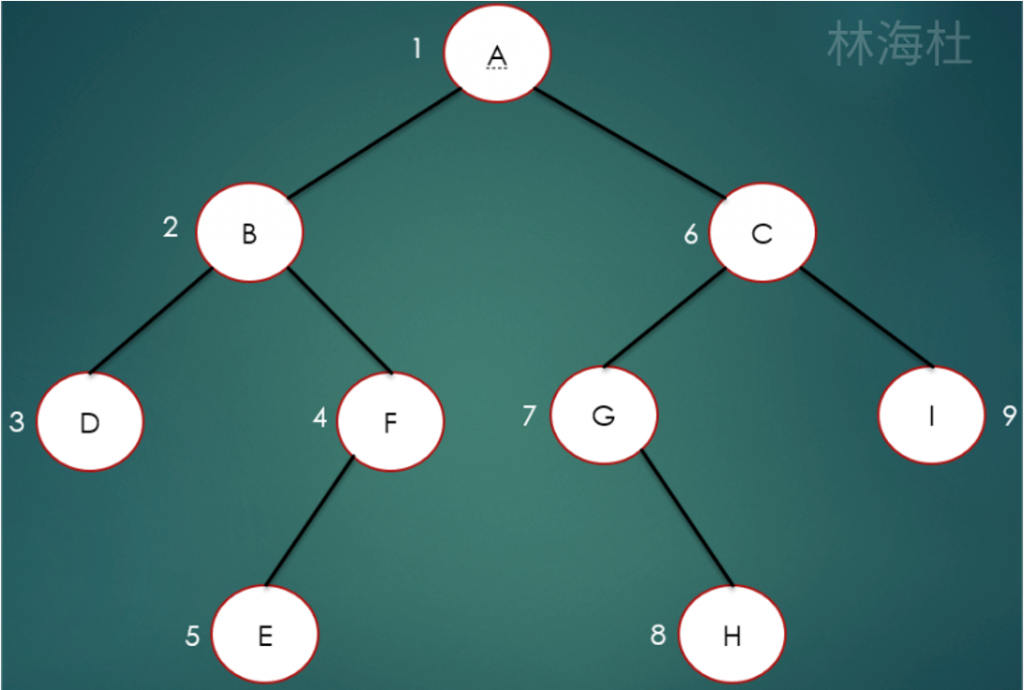

树的四种遍历方式

前序遍历结果为:ABDFECGHI

中序遍历结果为:DBEFAGHCI

后序遍历结果为:DEFBHGICA

层序遍历结果为:ABCDFGIEH

树的深度遍历代码实现:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
/****************************************************************
 C++ tree_DFT
 author: Alex Li
 date: 2023-6-3
 version:1.5
****************************************************************/

#include <iostream>
using namespace std;

struct Node{
     int data;
     struct Node *left, *right;
};

Node* newNode(int data){
    Node* temp=new Node;
    temp->data=data;
    temp->left=NULL;
    temp->right=NULL;
    return temp;
}


void printInorder(struct Node* node){
    if(node==NULL) return;
    printInorder(node->left);
    cout<<node->data<<" ";
    printInorder(node->right);
}

void printPreorder(struct Node* node){
    if(node==NULL) return;
    cout<<node->data<<" ";
    printPreorder(node->left);
    printPreorder(node->right);
}

void printPostorder(struct Node* node){
    if(node==NULL) return;
    printPostorder(node->left);
    printPostorder(node->right);
    cout<<node->data<<" ";
    }

int main(){
    struct Node* root=newNode(1);
    root->left=newNode(2);
    root->right=newNode(3);
    root->left->left=newNode(4);
    root->left->right=newNode(5);
    cout << "\nPreorder traversal of binary tree is \n";
    printPreorder(root);
     cout << "\nInorder traversal of binary tree is \n";
    printInorder(root);
     cout << "\nPostorder traversal of binary tree is \n";
    printPostorder(root);

    return 0;
}

广度优先遍历代码实现:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
/****************************************************************
 * C++ for binary tree DFS
 * author : Alex Li
 * date: 2023-6-3
 * version:1.0
 *****************************************************************/

#include <iostream>
using namespace std;

// A binary tree node has data,pointer to left child and a pointer to right child
struct node {
    int data;
    node *left, *right;
};

 /* Compute the "height" of a tree -- the number ofnodes along the longest path from the root
 node down to the farthest leaf node.*/
int height(node* node){
    if (node == NULL)
        return 0;
    else {
        //compute the height of each subtree
        int lheight = height(node->left);
        int rheight = height(node->right);

        //use the larger one
        if (lheight > rheight) return (lheight + 1);
        else return (rheight + 1);

    }
}
// Print nodes at a current level
void printCurrentLevel(node* root, int level){
    if (root == NULL)
        return;
    if (level == 1)
        cout << root->data << " ";
    else if (level > 1) {
        printCurrentLevel(root->left, level - 1);
        printCurrentLevel(root->right, level - 1);
    }
}

// Function to print level order traversal a tree
void printLevelOrder(node* root){
    int h = height(root);
    int i;
    for (i = 1; i <= h; i++)
        printCurrentLevel(root, i);
}

// newNode function that allocates a new node with the given data and NULL left and right pointers.
node* newNode(int data){
    node* Node = new node();
    Node->data = data;
    Node->left = NULL;
    Node->right = NULL;
   return (Node);
}

// Driver code
int main(){
    node* root = newNode(1);
    root->left = newNode(2);
    root->right = newNode(3);
    root->left->left = newNode(4);
    root->left->right = newNode(5);

    cout << "Level Order traversal of binary tree is ";
    printLevelOrder(root);

    return 0;
}


洛谷:U0306/P1827 P1030 B3642
